2022 XROAD 1



New Frame Design


With its all new frame, an integrated Bosch 500Wh PowerTube battery, Bosch’s new Performance Line motor and an 80mm travel fork, the 2022 Moustache Xroad 1 is the epitome of versatility and comfort. The Xroad comes equipped with practical and stylish accessories such as its new luggage rack and powerful lights front and rear. The new Xroad is as perfect for getting about day-to-day as it is for exploring further afield on the weekend.

For so many reasons the Moustache Xroad is New Zealand’s most sought after Rail Trail machine. With 80mm of trail-smoothing suspension and an ultra-comfortable suspended seatpost, the perfectly balanced ride will have you riding further, faster and happier.

New Bosch Motor and Battery

The 2022 Moustache Xroad 1 is powered by Bosch’s Active Line Plus motor, the benchmark in efficient and versatile motors. The brand new PowerTube battery is seamlessly integrated into the frame while remaining easy to take on and off. The integrated charge port on the bike makes recharging a breeze.

Integrated Parts


The luggage rack with QL3 system means you can attach the Moustache by Ortlieb panniers in seconds, giving the Xroad even more versatility. Its wide platform also makes it compatible with a large range of child seats. The MIK integration allows for quick fitting of a wide range of Basil bags and accessories, with more brands coming soon. Exclusive tubular Moustache mud-guards, ultra solid and reliable, are perfectly centred over the wheel to keep you and your bike dry and clean in all conditions.

Designed specifically with New Zealand conditions in mind the Xroad ticks every box for comfort, reliability and style.

Key benefits of the Xroad 1:

  • Bosch’s Active Line Plus delivers smooth, intuitive and near-silent power

  • Bosch’s 400wh PowerTube Battery allows you to ride more and charge less

  • The 30 Lux Integrated Front Light means you’ll see and be seen, day and night

  • A Shimano 9spd Drivetrain gives you a wide range of gears as well as outstanding durability

  • Moustache’s Dual wall Mudguards are lightweight, functional and stylish

  • The QL3 Ortlieb Compatible Rack AND MIK System Integration makes your options for carrying luggage limitless



  • Model: Xroad 1

  • Frame: Xroad, 6061 T4-T6 Alloy, variable thickness hydroformed tubes, Bosch PowerTube battery integration (vertical), integrated cable routing

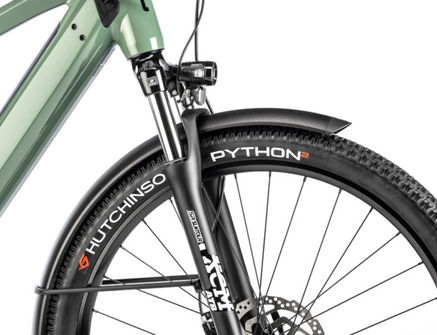

  • Fork: Suntour, XCM ATB, w/preload adjustment, 80mm travel

  • Motor: Bosch, Active Line Plus 250W – 35/50 Nm – Assistance from 40 to 250 % – 25 km/h – Natural – Noise free – Frictionless – Compact – Lightweight

  • Battery: Bosch, PowerTube 400Wh

  • Charger: Bosch, 2Ah

  • Display: Bosch, Purion- 5 modes (Eco, Tour, Sport, Turbo, Off) + Walk assist



  • Rear derailleur: Shimano, Altus, RD-M2000-SGS, 9-speed

  • Front cog / Chainring: Samox, Alloy, 40T w/chainguard

  • Cassette: Shimano, CS-HG201-9, 11-36T

  • Chain: KMC, X9, 9-speed

  • Shifters: Shimano, Altus, Rapidfire Plus for flat handlebar

  • Crankset: Moustache, Alloy, 170mm

  • Brakes: Shimano, MT200 hydraulic disc brakes

  • Rotors Front/Rear (mm): Shimano, 180mm front & 160mm rear



  • Hubs: Front = Shimano, 32H, 9x100mm, w/QR
    Rear= Shimano, 32H, 9x135mm, w/QR

  • Rims: Moustache, Alloy, double wall, 32H

  • Tires: Hutchinson, Python, 27.5×2.10



  • Saddle: Selle Royal, Wave Ergonomic

  • Seatpost: Moustache, Alloy, 31.6mm, 350mm

  • Seat clamp: Moustache, Alloy, 34.9mm

  • Handlebar: Moustache, Ergonomic, Alloy, 680mm, 25° backsweep

  • Stem: Moustache, Alloy, 90mm Adjustable

  • Headset: FSA, No 57-B

  • Grips: Ergonomic, dual-density

  • Headlight: AXA, Blueline, 30 lux, powered by main battery

  • Taillight: Spanninga, Presto2Guard, powered by main battery

  • Kickstand: Moustache, adjustable

  • Mudguards: Moustache, Alloy, double wall design, w/alloy stays

  • Rear carrier: Moustache, Alloy, specific semi-integrated rack, QL3 mount

  • Pedals: Resin with plateform and reflectors

  • Warranty: 5 years frame and Moustache Bikes fork – 2 years motor, battery (or 500 cycles) and accessories

  • Sizes: Small, Medium, Large, X-Large

  • Colour: Pastel Green, Glossy

  • Weight: 25.0 kg
