Description

The new Lundi 20.3 dual is equipped with a double battery set up which gives you a total capacity of 1000 Wh, so there’s no need to hesitate: you’ll be able to do a tour of the town 3 times over if you wish and continue without counting the kilometres. You’ll even be able to go an entire week without recharging the batteries, why not?

​

With its new longtail frame designed to guarantee you a large load capacity at the front and the rear, you will be able to safely transport your children or your belongings, well held in place thanks to the ALBERT protection bar, and easily change any accessories according to your needs.

Safety and Protection

​

• Excellent braking control thanks to Magura hydraulic disc brakes and specific E-Bike discs that ensure better heat evacuation.

• Powerful lights with a front directional AXA light and a rear light offering increased brightness during strong braking.

• Integrated monobloc wheel guard, that’s strong and long-lasting to protect your wheels as well as your passengers’ feet.

• ALBERT aluminum protection bar, fixed on the luggage carrier and enabling you to safely carry 2 children or large loads. Rounded edges are designed to protect your passengers.

Practical and Modular

​

• Extra-large aluminum Moustache luggage carriers, demountable side supports for QL3 bags.

• ALBERT protection bar that’s compatible with numerous accessories.

• Luggage carrier with the MIK HD system to fix multiple compatible accessories, baskets, and baby carriers in one click.

• Optional front luggage carrier with MIK platform available in the accessories range.

Transmission

​

• Transmission used on the Moustache Lundi is Shimano Deore 1×10 speed 11-46 cassette that’s reliable and precise offering a large range.

• Using a Shadow+ system for better chain tension for efficient power transfer.

• Narrow Wide chainring to avoid dropping the chain.

• Protective guard for better reliability and to stay clean in all conditions.

New Longtail Frame

​

• Aeronautical quality aluminum frame, ultra-stiff, with optional front luggage carrier mounts. Specific Lundi 20 aluminum fork. Reinforced rear enabling a total charge of up to 70 kg.

• Balanced geometry and lowered center of gravity to offer an easy and safe ride feeling and excellent maneuverability at low speeds.

• Rear central kickstand with wide support for better stability when you are loading or unloading the bike.

E-Powered by Bosch

​

• Ebike system is the Bosch Cargo Line system, light, dynamic, increased torque even at low pedaling frequencies for better momentum when pulling away and accelerating. 250W nominal power, torque up to 85 Nm. Assistance of up to 400 %.

• Using the Bosch, Power Pack 500Wh battery.

• The display is the Bosch Intuvia central console with offset controls, simple and intuitive, touchscreen, micro-USB socket – 5 assistance modes.

• Walk function offers assistance of up to 6 km/h when walking at the side of your bike.

Let's Roll!

​

• 20″ wheels with asymmetric aluminum rims, for an agile and precise ride.

• Kenda 20×2.3 reinforced specific tires, supporting heavy loads of up to 100 kg per tire.

• As comfortable as they are strong, their large volume will prevent you from trapping your wheels in tram rails.

$10,995.00

FRAME/FORK/MOTOR/BATTERY

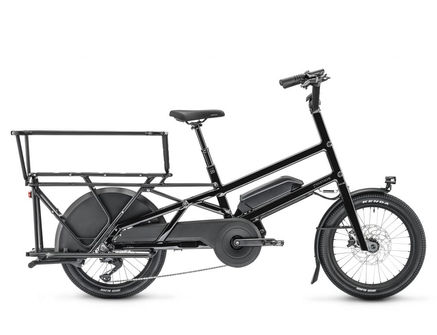

• Model: Lundi 20.3 DUAL

• Frame: Lundi 20 mid step-over, 6061 T4-T6 alloy, hydroformed and extruded triple cavity tubes for optimal stiffness. Integrated cable routing. Optimal geometry for stable handling and great maneuverability. Mounting points for optional front carrier

• Fork: Lundi, alloy w/integrated cable routing

• Motor: Bosch, Cargo Line – 250W nominal power, max 600W, 85Nm – Assistance up to 400 % – Powerful – Natural – Quiet – Frictionless – Compact – Lightweight

• Battery: Bosch, DualBattery, 2 x PowerPack 500Wh. Total: 1000Wh

• Battery Range: Estimate your ebike battery range

• Charger: Bosch, Fast Charger 6Ah, 3h half charge, 5.4h full charge

• Display: Bosch, Intuvia central mount with separate control unit – 5 modes (Eco, Tour, Sport, Turbo, Off) – « Walk assist » – Information available offline – USB port to charge a phone, MP3 player, etc.

DRIVETRAIN/BRAKES

• Rear derailleur: Shimano, Deore, RD-M5120-SGS, 10-speed, Shadow + (better chain retention)

• Front cog/Chainring: FSA, 48T Narrow Wide with chain guard – Direct mount

• Cassette: Shimano, CS-M4100-10, wide range 11-46T

• Chain: Shimano, HG40, 10-speed

• Shifters: Shimano, Deore, Rapidfire Plus

• Crankset: Moustache, alloy, 170mm

• Brakes: Magura, MT4, hydraulic disc brakes

• Rotors Front/Rear (in mm): Magura, MDR-C, e-bike specific, 203mm front and 180mm rear, for better heat dissipation and braking control

​

WHEELS/TYRES

• Hubs: Front: Moustache, 32H, 15x110mm, Boost / Rear: Moustache, 32H, 12x148mm, Boost

• Rims: Moustache, asymmetric 20″, alloy 6061E, welded, 32 holes, internal width 23mm

• Tires: Kenda, 20×2.3, heavy load compatible, up to 100kg per tire

​

OTHER COMPONENTS

• Saddle: Selle Royal, Essenza + Moderate

• Seatpost: Moustache, suspension + dropper, alloy 34.9mm, 100mm drop, 40mm travel, comfort and security

• Seat clamp: Moustache, key tightening

• Handlebar: Moustache, Lundi custom ergonomic, alloy

• Headset: FSA, No 28/41 integrated

• Grips: Ergonomic, dual-density

• Headlight: AXA, Blueline, 30 lux, powered by main battery

• Taillight: AXA, Duo Flat Signal, increased brightness under deceleration, powered by main battery

• Kickstand: Moustache, central rear, wide stance for better stability

• Mudguards: Front: Moustache, alloy, double wall design, w/alloy stays and mudflap / Rear: PP, 180° lateral protection

• Rear carrier: Moustache, alloy, exclusive longtail design w/ integrated footrests. Removable side fastenings for QL3 luggage. Platform with multiple MIK HD 27kg system to rapidly attach all compatible accessories, bags and child seats. ALBERT protection bar for children safety (recommended height between 110-140cm. Smaller children require adapted baby seats)

• Front carrier: Optional extra: Moustache, alloy, compatible with MIK baskets and accessories. Available in 2 sizes

• Pedals: Wide platform, anti-slip, alloy with reflectors

• Warranty: 5 years frame and Moustache Bikes fork – 2 years motor, battery (or 500 cycles) and accessories

• Sizes: One size fits all (size 39, suitable for approximately a 1,55m to 1,90m rider)

• Color: Black, glossy
